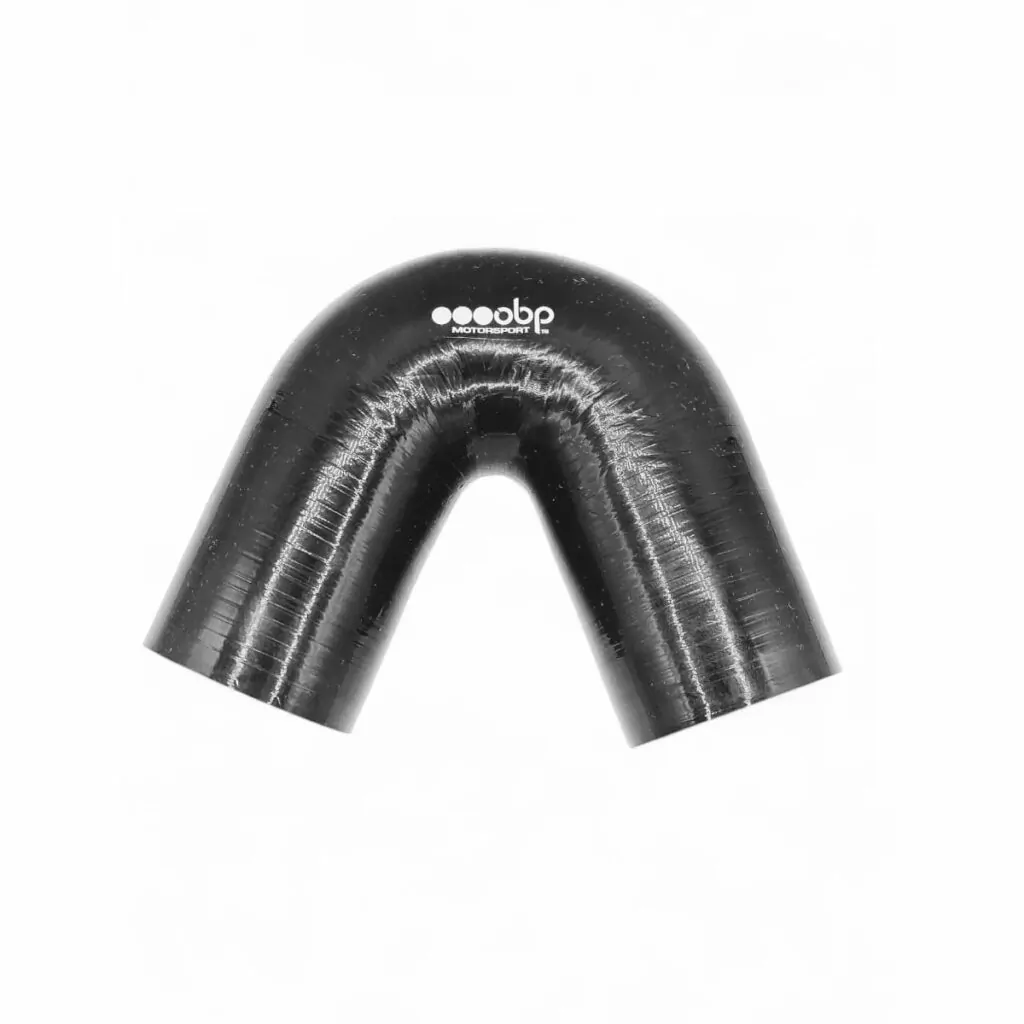

135° Elbow Silicone Hose
Description
Silicone Hose – 135° Elbow (Performance Reinforced Hose)
The obp Motorsport 135° silicone hose elbow is engineered for high-performance air and fluid transfer applications, delivering strength, flexibility, and long-term reliability. Perfect for cooling systems and intercooler setups, these premium hoses are designed to withstand the toughest conditions in both motorsport and road use.
Constructed from reinforced, high-quality silicone, each hose is manufactured to meet or exceed SAE J20 standards, ensuring exceptional performance across a wide temperature and pressure range.
Specifications:
Bore (ID): Dimensions listed refer to internal diameter
Angle: 135°
Leg Length: 102mm
Working Temperature Range: -60°C to +220°C
Burst Pressure: 218 – 348 PSI (depending on ply reinforcement)
Finish: Black silicone, ply reinforcement varies by application
Compliance: Meets or exceeds SAE J20 standards
Whether you’re building a race car, performance road car, or custom project, the obp Motorsport 135° silicone elbow hose offers professional-grade reliability and proven durability at an affordable price.
| Part Number | Description | PLY | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (KG) | Length (mm) |
| Silicone 135° Elbows | ||||||
| OBPSH-135-8 | 8mm Bore 135° Elbow | 3 | 12 | 36 | 0.062 | 102×102 |
| OBPSH-135-10 | 10mm Bore 135° Elbow | 3 | 12 | 36 | 0.070 | 102×102 |
| OBPSH-135-13 | 13mm Bore 135° Elbow | 3 | 8 | 24 | 0.095 | 102×102 |
| OBPSH-135-16 | 16mm Bore 135° Elbow | 3 | 7 | 21 | 0.095 | 102×102 |
| OBPSH-135-19 | 19mm Bore 135° Elbow | 3 | 6.5 | 19.5 | 0.110 | 102×102 |
| OBPSH-135-22 | 22mm Bore 135° Elbow | 3 | 6 | 18 | 0.130 | 102×102 |
| OBPSH-135-25 | 25mm Bore 135° Elbow | 3 | 5.5 | 16.5 | 0.142 | 102×102 |
| OBPSH-135-28 | 28mm Bore 135° Elbow | 3 | 5.5 | 16.5 | 0.182 | 102×102 |
| OBPSH-135-30 | 30mm Bore 135° Elbow | 3 | 5.5 | 16.5 | 0.166 | 102×102 |
| OBPSH-135-32 | 32mm Bore 135° Elbow | 3 | 5.5 | 16.5 | 0.191 | 102×102 |
| OBPSH-135-35 | 35mm Bore 135° Elbow | 3 | 5 | 15 | 0.211 | 102×102 |
| OBPSH-135-38 | 38mm Bore 135° Elbow | 4 | 5 | 15 | 0.291 | 102×102 |
| OBPSH-135-42 | 42mm Bore 135° Elbow | 4 | 5 | 15 | 0.314 | 102×102 |
| OBPSH-135-45 | 45mm Bore 135° Elbow | 4 | 5 | 15 | 0.240 | 102×102 |
| OBPSH-135-48 | 48mm Bore 135° Elbow | 4 | 4.5 | 13.5 | 0.268 | 102×102 |
| OBPSH-135-50 | 50mm Bore 135° Elbow | 4 | 4.5 | 13.5 | 0.378 | 102×102 |
| OBPSH-135-55 | 55mm Bore 135° Elbow | 4 | 4.5 | 13.5 | 0.460 | 102×102 |
| OBPSH-135-57 | 57mm Bore 135° Elbow | 4 | 4 | 12 | 0.464 | 102×102 |
| OBPSH-135-60 | 60mm Bore 135° Elbow | 4 | 4 | 12 | 0.464 | 102×102 |
| OBPSH-135-64 | 64mm Bore 135° Elbow | 4 | 4 | 12 | 0.502 | 102×102 |
| OBPSH-135-68 | 68mm Bore 135° Elbow | 4 | 4 | 12 | 0.493 | 102×102 |
| OBPSH-135-70 | 70mm Bore 135° Elbow | 4 | 4 | 12 | 0.556 | 102×102 |
| OBPSH-135-76 | 76mm Bore 135° Elbow | 4 | 4 | 12 | 0.587 | 102×102 |
| OBPSH-135-80 | 80mm Bore 135° Elbow | 4 | 3 | 9 | 0.628 | 102×102 |
| OBPSH-135-83 | 83mm Bore 135° Elbow | 4 | 3 | 9 | 0.698 | 102×102 |
| OBPSH-135-89 | 89mm Bore 135° Elbow | 4 | 3 | 9 | 0.762 | 102×102 |
| OBPSH-135-102 | 102mm Bore 135° Elbow | 5 | 3 | 9 | 1.080 | 102×102 |
