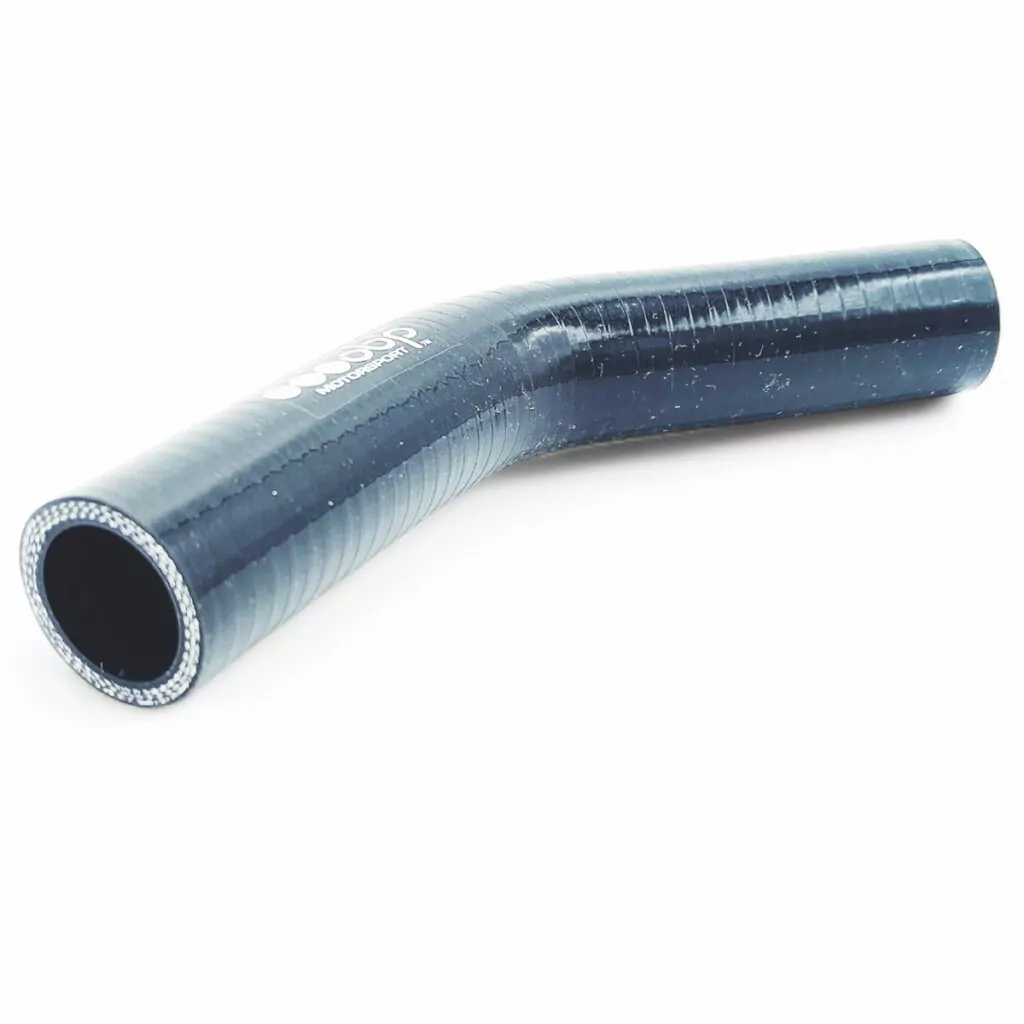

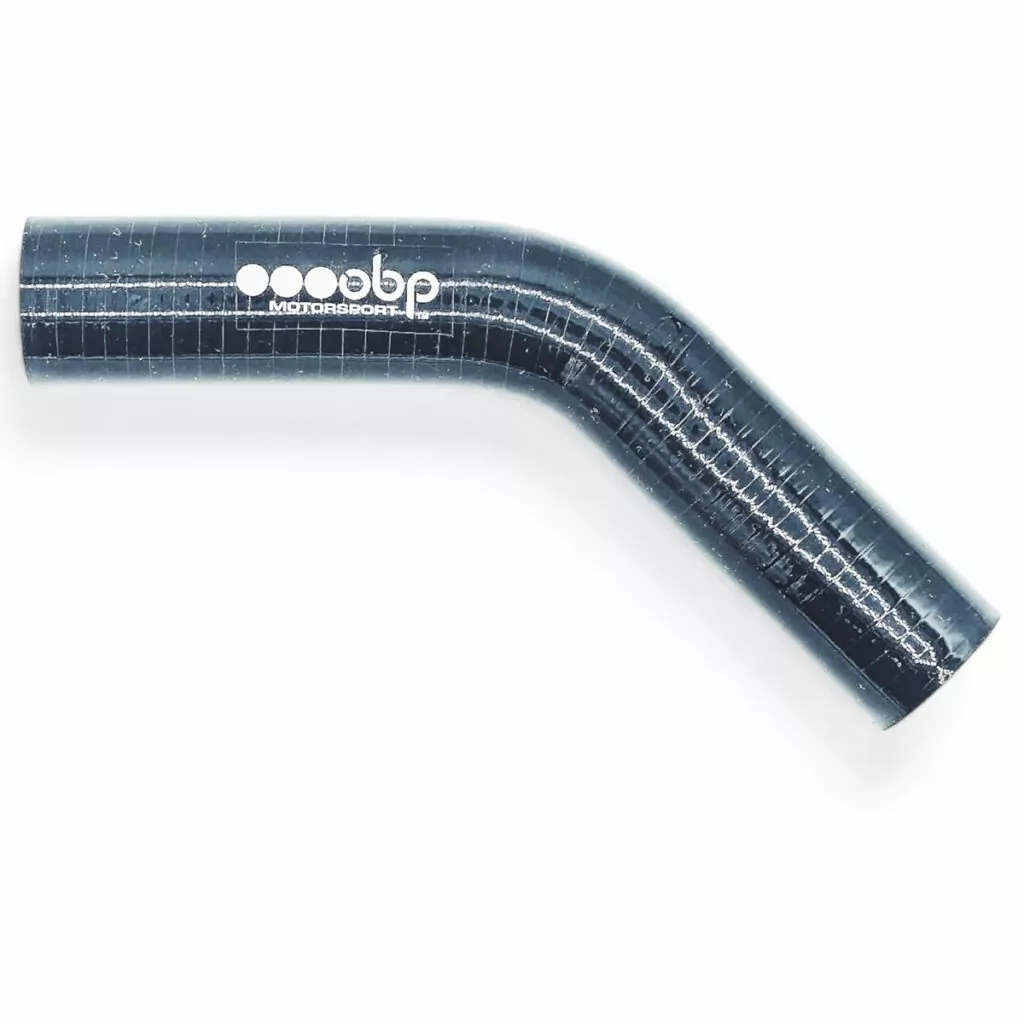

45° Elbow Silicone Hose
Description
Silicone Hose – 45° Elbow (Performance Reinforced Hose)
The obp Motorsport 45° silicone hose elbow is engineered for air and fluid transfer applications, delivering superior strength, flexibility, and long-term reliability. Perfect for cooling systems, intercooler setups, and custom builds, this hose performs flawlessly in both motorsport and high-performance road vehicles.
Constructed from premium reinforced silicone, each hose is manufactured to meet or exceed SAE J20 standards, providing exceptional resistance to heat, pressure, and wear under demanding conditions.
Specifications:
Bore (ID): Dimensions refer to internal diameter
Angle: 45°
Leg Length: 102mm
Working Temperature Range: -60°C to +220°C
Burst Pressure: 218 – 348 PSI (depending on ply reinforcement)
Finish: Black silicone, ply reinforcement varies by application
Compliance: Meets or exceeds SAE J20 standards
The obp Motorsport 45° silicone elbow hose is a professional-grade solution for high-performance applications, offering reliable, durable, and affordable performance for both motorsport and road car projects.
| Part Number | Description | PLY | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (KG) | Length (mm) |
| OBPSH-45-6 | 6mm Bore 45° Elbow | 3 | 12 | 36 | 0.035 | 102×102 |
| OBPSH-45-8 | 8mm Bore 45° Elbow | 3 | 12 | 36 | 0.043 | 102×102 |
| OBPSH-45-10 | 10mm Bore 45° Elbow | 3 | 11 | 33 | 0.052 | 102×102 |
| OBPSH-45-13 | 13mm Bore 45° Elbow | 3 | 8.5 | 25.5 | 0.070 | 102×102 |
| OBPSH-45-16 | 16mm Bore 45° Elbow | 3 | 7 | 21 | 0.076 | 102×102 |
| OBPSH-45-19 | 19mm Bore 45° Elbow | 3 | 6.5 | 19.5 | 0.092 | 102×102 |
| OBPSH-45-22 | 22mm Bore 45° Elbow | 3 | 5.5 | 16.5 | 0.093 | 102×102 |
| OBPSH-45-25 | 25mm Bore 45° Elbow | 3 | 5.5 | 16.5 | 0.094 | 102×102 |
| OBPSH-45-28 | 28mm Bore 45° Elbow | 3 | 5 | 15 | 0.103 | 102×102 |
| OBPSH-45-30 | 30mm Bore 45° Elbow | 3 | 5 | 15 | 0.125 | 102×102 |
| OBPSH-45-32 | 32mm Bore 45° Elbow | 3 | 5 | 15 | 0.134 | 102×102 |
| OBPSH-45-35 | 35mm Bore 45° Elbow | 3 | 5 | 15 | 0.131 | 102×102 |
| OBPSH-45-38 | 38mm Bore 45° Elbow | 3 | 5 | 15 | 0.138 | 102×102 |
| OBPSH-45-42 | 42mm Bore 45° Elbow | 3 | 4.5 | 13.5 | 0.163 | 102×102 |
| OBPSH-45-45 | 45mm Bore 45° Elbow | 3 | 4.5 | 13.5 | 0.152 | 102×102 |
| OBPSH-45-48 | 48mm Bore 45° Elbow | 3 | 4.5 | 13.5 | 0.196 | 102×102 |
| OBPSH-45-51 | 51mm Bore 45° Elbow | 4 | 6 | 18 | 0.229 | 102×102 |
| OBPSH-45-55 | 55mm Bore 45° Elbow | 4 | 6 | 18 | 0.259 | 120×120 |
| OBPSH-45-57 | 57mm Bore 45° Elbow | 4 | 5 | 15 | 0.264 | 120×120 |
| OBPSH-45-60 | 60mm Bore 45° Elbow | 4 | 5 | 15 | 0.283 | 120×120 |
| OBPSH-45-64 | 64mm Bore 45° Elbow | 4 | 5 | 15 | 0.315 | 120×120 |
| OBPSH-45-68 | 68mm Bore 45° Elbow | 4 | 5 | 15 | 0.324 | 120×120 |
| OBPSH-45-70 | 70mm Bore 45° Elbow | 4 | 5 | 15 | 0.317 | 120×120 |
| OBPSH-45-76 | 76mm Bore 45° Elbow | 4 | 4 | 12 | 0.357 | 120×120 |
| OBPSH-45-80 | 80mm Bore 45° Elbow | 4 | 4 | 12 | 0.359 | 120×120 |
| OBPSH-45-83 | 83mm Bore 45° Elbow | 4 | 4 | 12 | 0.377 | 120×120 |
| OBPSH-45-89 | 89mm Bore 45° Elbow | 4 | 4 | 12 | 0.400 | 120×120 |
| OBPSH-45-102 | 102mm Bore 45° Elbow | 4 | 4 | 12 | 0.628 | 120×120 |
